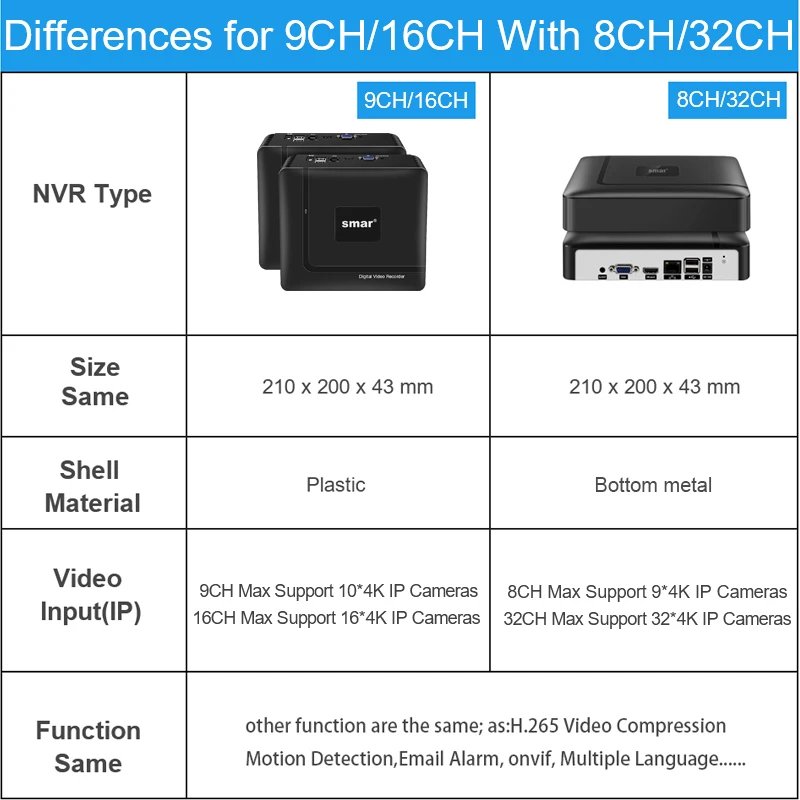

32CH NVR is differences with9CH/ 10CH/16CH NVR
Differences1: 32CH Shell Material: Botton Metal(White), 9CH/10CH/16CH Shell Material:Plastic(Full Black)
Differeance2:Video Input(IP): 9CH Max support 9*4K IP Cameras,10CH max support 10*4K IP Cameras,16CH max support 16*4K IP Cameras,32CH max support 32*4K IP Cameras.

Same: Other function are the same,as H.265 Video Compression,motion detection,Email alarm,Multiple Language….
Please check the picture as follow：

Packing List:

1* 9CH/ 10CH/16CH/32CH H.265 NVR
1* USB Mouse
1* DC12V Power Adapter for NVR
1* User’s Manual

For 9CH NVR:

1. 9CH: it’s XM8536D Chip;
2. Max support 9*4K(8MP) IP Camera
3. Don’t support Wifi Adapter;
4. 9CH(XM) Max Support 1920x1080P Display
5.Support Multiple Languages: Chinese, English, Italian, Spanish, Japanese, Russian, French, Germany, Portuguese, Turkish, Greek, Vietnamese, Indonesian, Czech

For 10CH NVR:

1.10CH:It’s XM8536E Chip (The inventory chips in the Moscow warehouse are：Mstar)
2. Max support 10*4K(8MP) IP Camera

For 16CH NVR:

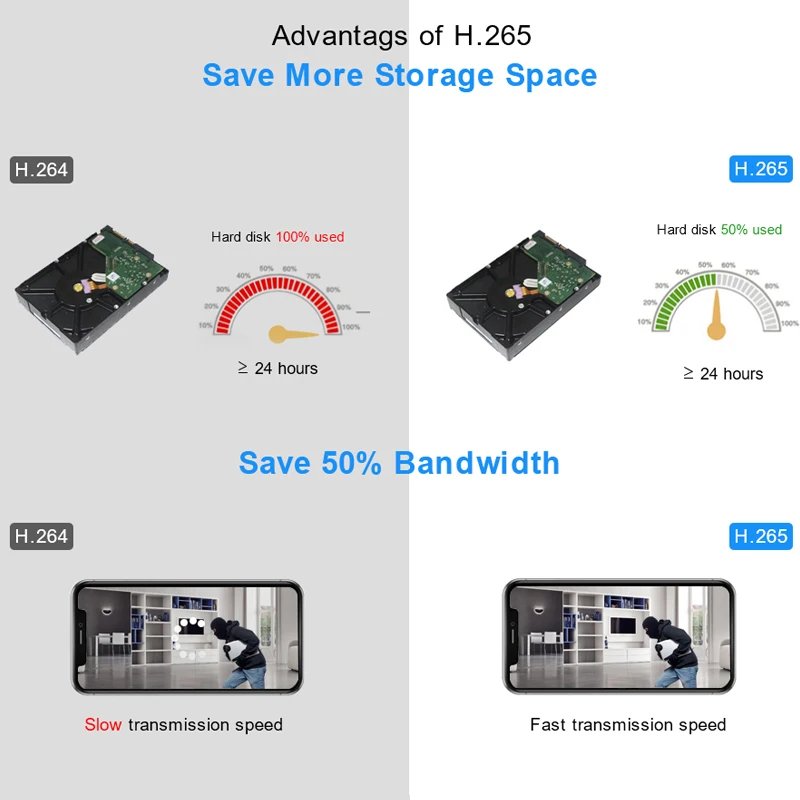

Advanced H.265+ Video Compression

H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 70% of the bit rate at the same quality of coding, HD resolution offer you best image quality in a lower bit rate,save your HDD storage space and reduce your purchase cost.

Please refer to the following picture for how to install the hard disk:

HDD Recommend:

1.It support 3.5″ SATA HDD ,Max support 1*4TB HDD.

2. We can Recommend Professional 3.5″ SATA Interface 1TB/2TB/3TB/4TB HDD For you ,please click below picture:

NoteWhen the hard disk is full, the system will automatically delete the oldest recorded video, thus achieving intelligent loop recording.

Data are for reference only, subject to actual use.

Support PAL and NTSC Mode

Version Information

When you need firmware, you can send this photo to us. Usually, the firmware needs to be updated every 3-4 monuthes, So please don’t ask us again this time. When you send photos, please add your email address, and we will send firmware to your address.

Support ONVIF

You can connect any brand’s Onvif IP Cameras to our this NVR;

Reminder:

Smar’s Video Recorder all support ONVIF and NETIP Protocol;

Netip: It is a Private protocol, only applicable to Network Video Products of XM Scheme；

Onvif: It is an international open network video product standard network interface protocol；

Onvif Advantages:

Onvif likes a communication bridge, It can implement multiple devices(IP Camera and Video Recorder) from different manufacturers connected to each other, mutual Communication.

Onvif Disadvantages:

The standards of onvif protocol are also different for video network products of different manufacturers;

So,Their communication with each other will cause some bad problems, such as: motion detection can not work normally; Audio and video can’t be synchronized; Loss of video data, etc……

(Note: We recommend that when you buying the Network Video Recorder, also buying the IP Camera from our store, Because they have perfect private protocol between them, it can fully display products all of the functions.)

HDMI & VGA Output

Default Display of Resulution:1920*1080,Your monitor must be has the same display of Resolution, otherwise it will not image output

Easy access via multi-platform

Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time… any where…

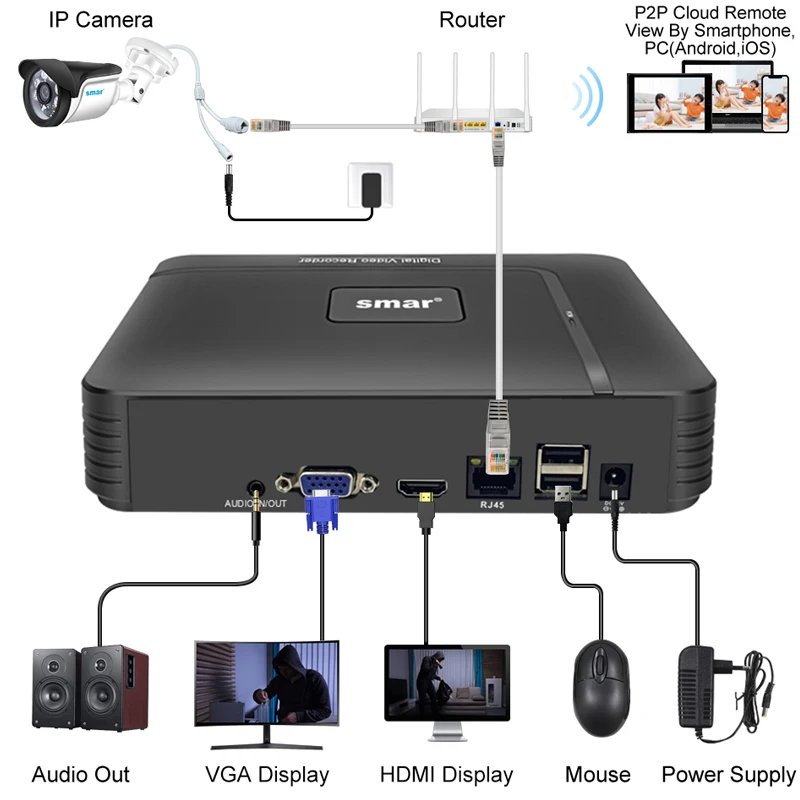

How to connect IP cameras to NVR?

1. Please connect the power supply to IP Cameras and NVR;

2. Please connect the IP cameras to the Router through the network cable (Select router for different channels according to the number of cameras)

3. Please connect NVR to Router through the network cable;

4. Log in to the DVR, then search the IP address of IP cameras through NVR, add the IP address of IP cameras to NVR, and then they will be able to work together!

Note: If your IP Cameras is not ours, Please check whether your IP cameras support the onvif protocol, otherwise they will not work together!

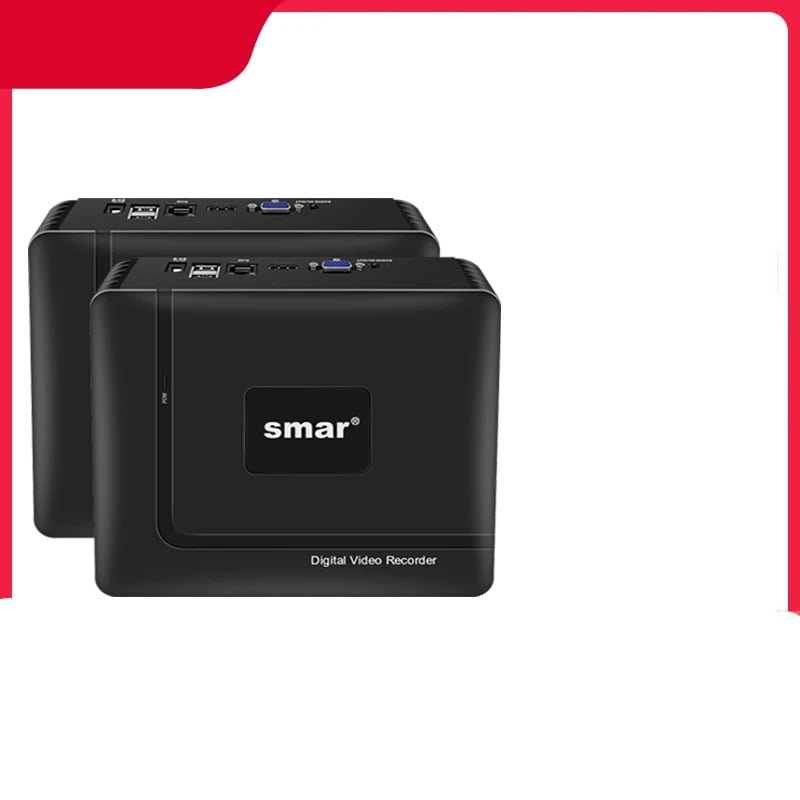

9CH/16CH NVR Size and Multi angle display:

8CH/32CH NVR Size and Multi angle display:

How to remote view through Mobile phone?

1. Dowload XMEye Pro Free APP in your mobile phone;

2. Open the software register an account and login.

3. Add devices( Connect the camera to the NVR first)

4. Add successfully, enjoy live video.

How to manage the cameras through PC client?

1. Please used your mobile phone to scan the QR code as below, and then click to download；
2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin
