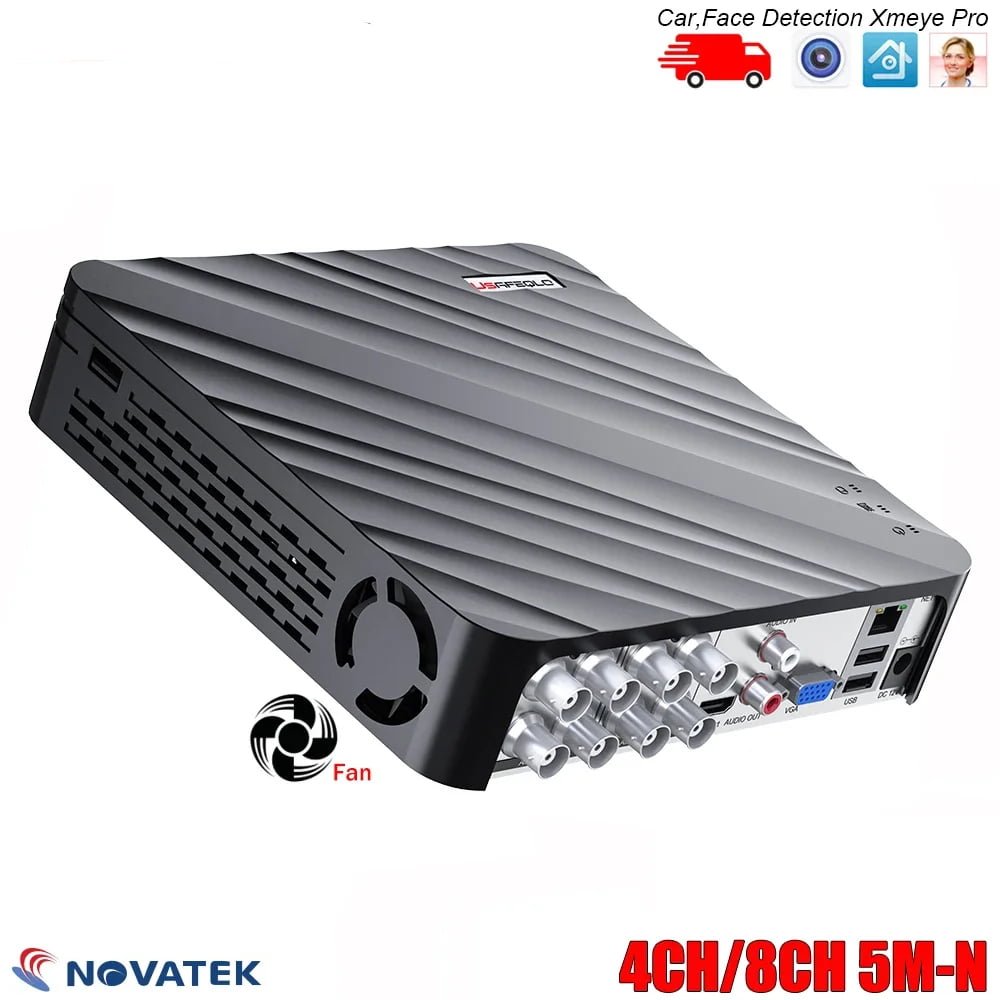

Security Video Recorder H.265 Motion USAFEQLO CCTV DVR Hybrid 4CH 8CH 5M-N 6 IN 1 AHD CVI TVI CVBS 1080N Security DVR NVR For AHD IP Camera Analog Camera XMEYE Pro
77.03 $ – 302.70 $
Features:
|
Model |
40N04R-LME |
40N08R-LME |
|
|
Main processor |
NT98321 |
||
|
Interface |
Preview |
1/4/8/9 |
|
|
Video |
Codec |
H.265+ |
|
|
Monitor quality |
VGA(1080P at most);HDMI(2K at most) |
||
| AHD5M-N Resoluton is 960*1080, Please attction this information
Camera FPS must smaller than DVR, or will not image on dvr |
|||
|
Preview ability |
4*5M-N 4*4M-N 4*1080P default:5M-N |
8*5M-N 12FPS 8*4M-N 15FPS 8*1080P(XVI) AHD/CVI/TVI will show 1080N default:5M-N |
|
|
Encode ability |
4*5M-N 4*4M-N 4*1080P default:5M-N |
8*5M-N 12FPS 8*4M-N 15FPS 8*1080P(XVI) AHD/CVI/TVI will show 1080N default:5M-N |
|
|
Decode ability |
4*5M-N 4*4M-N 4*1080P default:5M-N |
8*5M-N 12FPS 8*4M-N 15FPS 8*1080P(XVI) AHD/CVI/TVI will show 1080N default:5M-N |
|
|
Multi-mode input |
Analog:4*5M-N Hybrid:4*5M-N(analog)+2*1080P(network) Network:16*1080P;8*5M |
Analog:8*5M-N Hybrid:8*5M-N(analog)+4*1080P(network) Network:16*1080P:8*5M |
|
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
||
|
Audio |
Audio compression |
G.711A |
|
|
Intercom |
support |
||
|
Record & playback |
Record mode |
manual>alarm>motion detection>timing |
|
|
Local Playback |
2ch(analog input mode) |
4ch(analog input mode) |
|
|
Search mode |
Search by time, calendar, event, channel |
||
|
Storage & backup |
Video storage |
HDD, network |
|
|
Backup mode |
Network, USB hard disk, USB burner, SATA burner |
||
|
External Interface |
Video input |
4ch BNC |
8ch BNC |
|
Video output |
1ch VGA, 1ch HDMI |
||
|
Loop Vout |
N/A |
||
|
Audio I/O |
4/1 |
||
|
Alarm I/O |
0/0 |
||
|
Network interface |
RJ45 10M/100M self-adaption |
||
|
PTZ control |
NO |
||
|
USB |
2* USB 2.0 ports |
||
|
HDD |
1*SATA ports (Max 14TB/per) |
||
|
Wireless |
3G, WIFI (extend via USB) |
||
|
Genera |
Power supply |
12V/2A |
|
|
Power Consumption |
<15W (without HDD) |
||
|
Working environment |
Temperature:0℃-+55℃,Humidity:10%-90%,Atm:86kpa-106kpa |
||
|
Dimension |
200mm*200mm*45mm (Case) |
||
|
Weight |
950g (Package) |
||
Bottom and Top
Win 10 Menu
| Weight | 21 kg |
|---|---|
| Dimensions | 4 cm |
| Brand Name | USAFEQLO |
| Origin | Mainland China |
| Two-way Audio | YES |
| Compression Format | H.264 |
| Wireless Security | wep |
| Hard drive Interface Type | SATA |
| e-Cloud(P2P) | YES |
| IP Mode | Static IP address |
| Hard Drive Size | 3.5'' |
| DVR Power Supply | DC12V |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Supported Mobile Systems | Windows Mobile |
| Audio Compression Format | G711A |
| Model Number | 40N04/08R-LME |
| Audio Input | 1 RCA |
| Supported Operating Systems | Mac OS |
| Video Standard | NTSC/PAL |
| Smart home platform | Xmeye |
| Backup Type | Hard Drive |
| Video Resolution | 5MP |
| Alarm Action | Local Alarm |
| Certification | CE |
| Network Interface | RJ45 10/100M |
| Audio Output | 1CH RCA |
| HDD Capacity | None |
| Communication Interface | NONE |
| Video Adjustment | Auto White Balance |
| Technology | Network |
| Network Protocol | SMTP |
| Encode capacity | 5MP-N 12FPS Max |
| Video output | 1ch VGA, 1ch HDMI-Compatible |
| USB | 2* USB 2.0 |
| Power supply | 12V2A |
| VMS/ CMS | Support |
| Support Camera | AHD/IP/Analog camera |
| Email photo | Send message to email, not photo |
| HVR | AHD/CVI/TVI/CVBS/IP/XVI |
| Material | Plastic+Metal |
| Coding | AHD H.265/H.264 All Support |
| Feature | FaN/ LED/ infront Mouse |
| Choice | yes |
| semi_Choice | yes |
