○ 200 Channel

○ Cross-Band Intercom

○ 1750HZ Call Tone

○ Program On Site

○ Emergency Alert

○ FM Radio

○ 10-Group Scrambler

○ Multi-Scan

○ CTCSS/DCS

○ Remote Kill/Revive

○ Keypad Lock

○ Jacklight

○ PC Programmable

○ Busy Channel Lock

○ VOX

○ Dual-watch opertion

○ Time-Out-Timer

○ Reset

○ Large LCD Display

○ Voice Prompt

○ Reminding Switch

○ 10 Emergency Weather Channels

○ Power-on Password Protection（By PC Programmable）

○ AM/FM Aviation Band Receiving

○ Reverse Frequency Function

○ Type-C And Charger-Base Charging

○ Wide/Narrow Bandwidth

○ Offset Frequency Direction Set1

○ Wireless Radio Replication

○ Squelch Level Adjustable

○ Repeater Forwarding Confirmation Function

○ Frequency And Channel Mode Shift

○ Offset Frequency Setting

○ Channel Scan And Add

○ DTMF Calling

○ DTMF ANI

○ DTMF Select Call (single call, group call, all call)

○ Backlight Auto Off Time Selective

○ Automatic Signaling Search

○ Multi Step Frequency

○ One Key Call Channel

○ Multi Display Of Channel No./Channel Frequency/Channel Name

○ H (High)，M (Medium)，L (Low) Output Power Selective

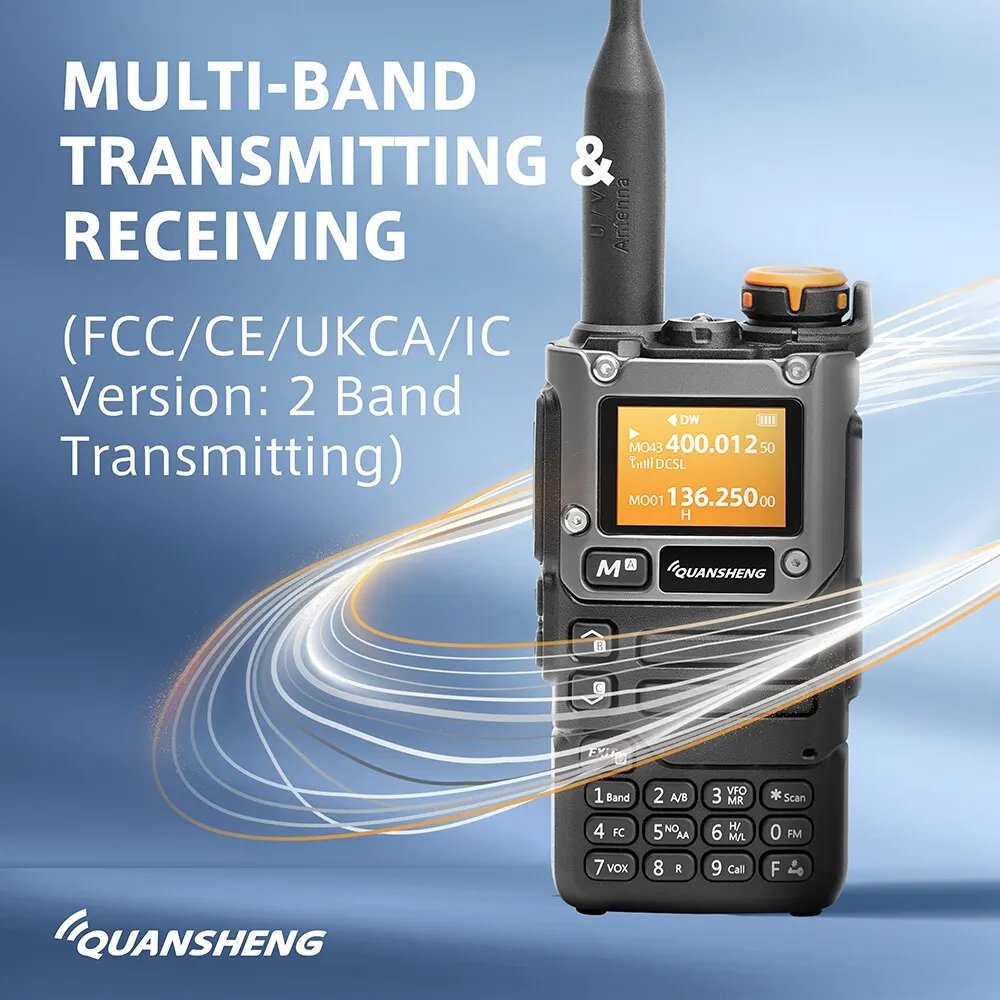

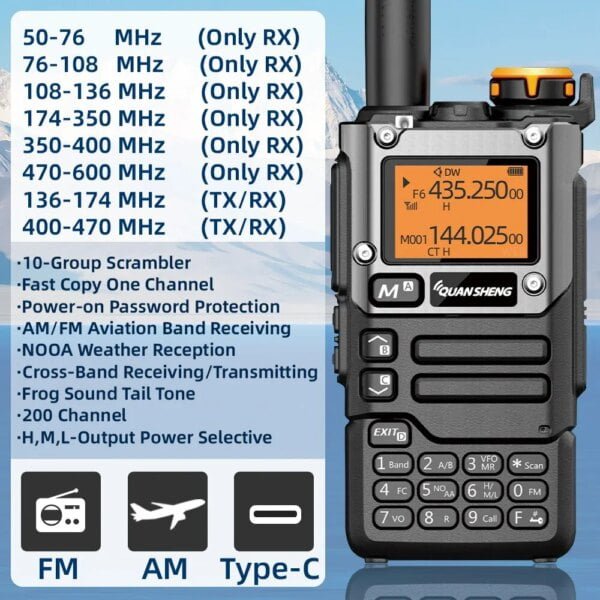

○ Multi-Band Transmitting & 50∽600MHz Receiving

○ Receive/Transmit Code Setting Separately

○ High Capacity BatteryLong Standby Time

○ Fast Copy One Channel（ACT AS FREQUENCY METER (FOR TWO-WAY RADIO & SOME OTHER DEVICES)

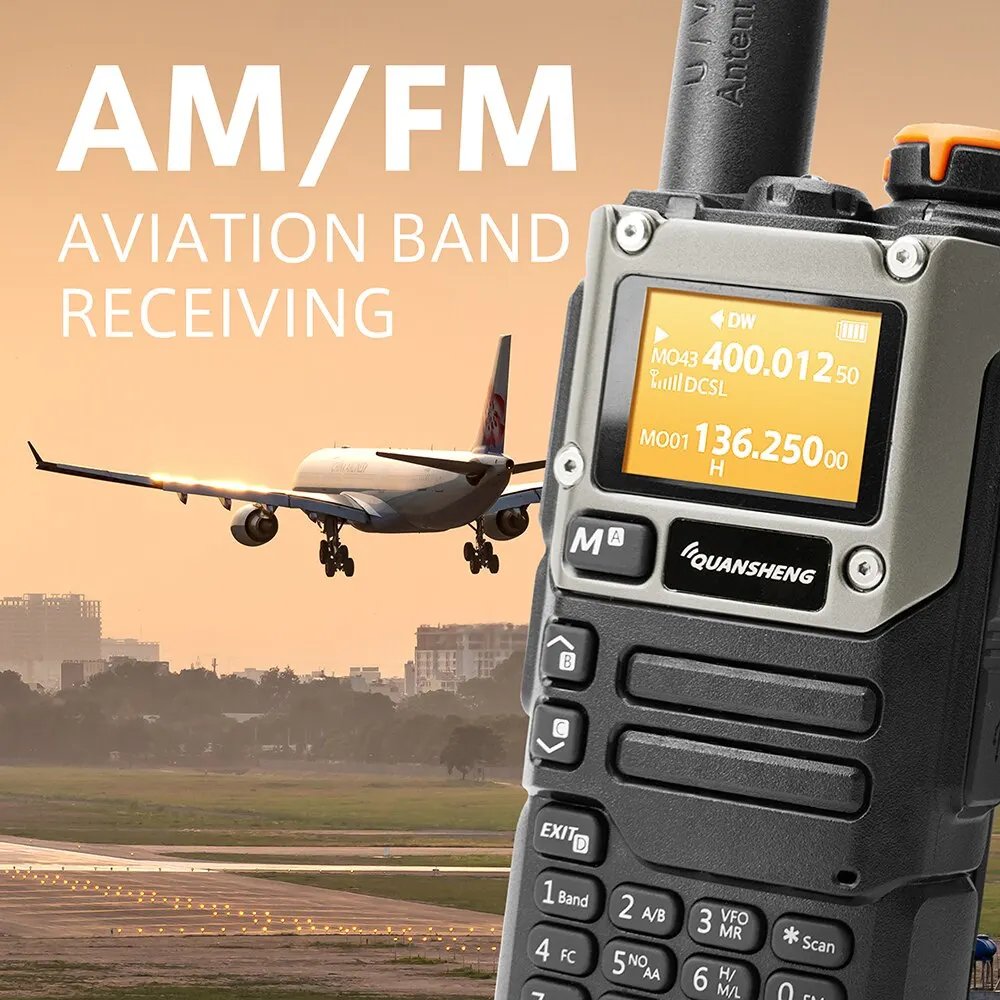

AM/FM Aviation Band Receiving .

NOOA weather reception .

10 Emergency Weather Channels .

Bring more convenience to your outdoor travel .

10-Group Scrambler .Encrypted Communication .

Multiple security encryption , Protect your call privacy and communication security .

Power-on Password Protection （By PC Programmable）.

DTMF .

Dual tone multi frequency signal , Simplefast and reliable transmission technology .

Many ways to scan .

Detect without knowing the frequency and ct/dcs used by the other party .

Cross-Band Receiving/Transmitting .

Fast Copy Frequency .

Fast Copy One Channel .

Act As Frequency Meter For Two-Way Radio & Some Other Devices .

F+4, Turn On Frequency Copy .

Frog sound ending tone .

Frog Sound Tail Tone .

After the walkie talkie transmission is completed, the receiving console emits a “Frog sound ” tail tone signal to indicate the end of the call .

Multiple charging methods .

TYPE-C/ Charger-Base Charging/charging bank/car charging/anytime, anywhere to continue charging.

General Specifications:

Channel：200；

Stored FM Radio Channel Quantity：20；

NOAA Channel：10；

Frequency Stability：±1ppm；

Modulation Mode：FM:11KΦF3E(12.5KHz),16KΦF3E(25KHz)；

Dimension：115mmX60mmX37.5mm；

Weight：234g；

Operating Temperature：-20℃+60℃；

Antenna Impedance：50Ω；

RECEIVING:

Sensitivity：FM(12dB SINAD)；

F1(50∽76)：-121dBm

F2(108∽135.9975)：-121dBm

F3(136∽173.9975)：-123dBm

F4(174∽349.9975)：-123dBm

F5(350∽399.9975)：-123dBm

F6(400∽469.9975)：-123dBm

F7(470∽599.9975)：-121dBm

WFM(20dB SINAD)：WFM(76∽108)-110dBm

AM(10dB S/N)：F2(108∽135.9975)

Audio Frequency：≥0.5W

Audio Distortion：≤10%

TRANSMITTING:

Output Power：≤5W；

Emission Current：≤1.5A；

Max Frequency Deviation：≤5KHz(25KHz),≤2.5KHz(12.5KHz)；

Modulation Distortion：≤5%；

Stray Power：≤7.5uW；

Adjacent Channel Power：70dB(25KHz),60dB(12.5KHz)；

Residual Modulation：40dB；
